The Multilin™ 8 Series is a single, integrated platform that delivers advanced protection, control, monitoring and metering for critical feeder, motor, transformer and generator applications in both utility and industrial environments. With 12 switchgear control elements, fully configurable single line diagram on a large color graphical display, 36 alarm integrated annunciator panel and up to 20 push buttons.

Key Benefits:

General Information

Multilin F650 is designed for protection, control, and automation applications related to feeders. It provides high-speed protection and control for feeder management and load control applications. With flexible configuration features, it offers advanced functionality and can be used in various applications.

Key Benefits:

General Information

MiCOM Agile P44 provides unmatched protection for high voltage overhead lines and underground cables. The system is adaptable to the method of grounding and extends to cover up to nine distance zones, including the most challenging applications. Each relay includes multiple main protection elements, including distance, delta directional comparison protection, directional earth fault unit protection, and transient earth fault detection. Additionally, the device offers one-box bay control capabilities for up to two circuit breakers and up to eight other controllable switchgear items.

Key Benefits:

General Information

P40 Agile Enhanced provides flexible protection and control for both overhead and underground feeder circuits with its configurable features. It enables easy integration to new or existing SCADA or DCS systems for real-time situational awareness. Its comprehensive power quality monitoring and extensive data logging capabilities enable users to make quick and effective power grid decisions, thus increasing service reliability and availability levels.

Key Benefits:

General Information

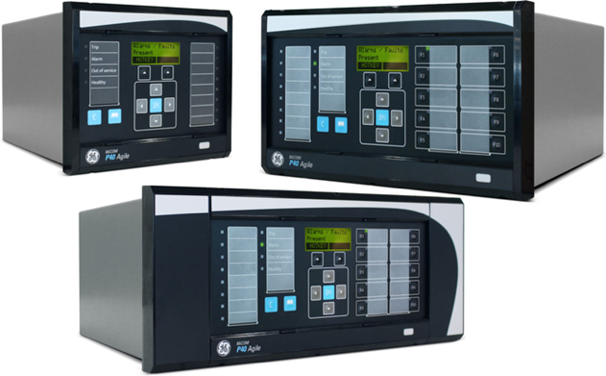

The P40 range offers precise relay functionality and durable hardware for use in digital substations. With a variety of models for different applications, the P40 series is a key part of GE’s protection, control, measurement, monitoring and communication functions. The versatile hardware and user-friendly S1 Agile PC tool make for easy deployment, configuration and management. The P40 series features an intuitive user interface suitable for all skill levels and offers easy communication with substation control or SCADA systems using various protocols, including IEC 61850.

Key Benefits:

General Information

Secure, high-speed protection elements for complete generator protection, compliant with IEEE C37.102

General Information

General Information

Perception Fleet is GE’s Online Transformer Fleet Management software system. It provides an automatic and online fleet management assessment by evaluating the condition of assets and prioritizing them within a fleet. It offers comprehensive fleet condition rankings, risk information, and expert analysis on-demand through a web interface, eliminating time-consuming and costly manual processes.

Key Benefits:

General Information

Kelman Transport X², as a portable system, enables the quick detection of transformer conditions with high-precision gas measurement technology. GE’s Photo-acoustic spectroscopy (PAS) technology provides laboratory-quality results without requiring calibration, thanks to its ease of use and portability. With new features developed through more than 40 years of experience, Transport X² improves and enhances the user experience.

Key Benefits:

General Information

GE’s Reason S20 series of managed Ethernet switches are designed for IEC 61850 digital substation networks in harsh environments. They offer flexible, reliable, and robust packet switching and support IEEE 1588v2 (PTP) time synchronization.

Key Benefits:

General Information

Bushings today are omnipresent in high voltage (HV) substation transformers, CTs and switchgear. They account for a large proportion of HV substation failures and half of the incidents are catastrophic with severe and dangerous consequences. Preventive maintenance, early replacement and regular off-line testing have been employed to address this issue in the past. Now, technology exists that enables asset owners to detect impending failures and reduce their maintenance costs.

GE’s Intellix BMT 330 is an on-line system that continuously monitors not only the condition of the bushings (capacitance and power factor), but also the presence of partial discharge (PD) activity in the transformer main tank. It will alert personnel of fault conditions at an early stage and provide vital health information on the bushings and the transformer.

The Intellix BMT 330 can be utilized as a stand-alone device, or it can be used in conjunction with GE’s Kelman TRANSFIX™ family of dissolved gas analysis (DGA) multi-gas analyzers. The combination of the Intellix BMT 330 and the TRANSFIX offers customers an integrated, one-source solution that provides a more in-depth view of the transformer’s condition and monitors the root causes of most transformer failures.

General Information

Knowledge of the condition of transformers is essential for all electrical networks and on-line monitoring of transformers is an increasingly vital component of successful asset management program. The information provided by multi-gas on-line DGA allows valuable asset capabilities to be maximised and expensive failures to be avoided.

Dissolved Gas Analysis (DGA) and moisture measurement of the insulation oil are recognised as the most important tests for condition assessment of transformers. Traditionally performed in a laboratory environment, the MULTITRANS uniquely provides the capability to perform full on-line multi-gas DGA and moisture monitoring of up to three main tank oil sources in a single phase bank of transformers.

The MULTITRANS is designed for large transformers with three single phase tanks. Utilising photo-acoustic spectroscopy (PAS) measurement technology well suited to field application, providing laboratory challenging levels of precision and repeatability. Full 9 gas DGA sampling can be performed as often as every hour on a single tank and up to once every three hours on a three tank configuration. This includes monitoring of the 7 key gases (Hydrogen (H2), Carbon monoxide (CO), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Carbon dioxide (CO2)) employed in all common diagnostic methods and MULTITRANS offers full gas in oil trending, analysis and diagnostic capabilities through its close integration with GE’s powerful Perception software suite and/or users own software, historian and SCADA systems. MULTITRANS is best suited for monitoring large, system critical or compromised single phase multiple tank transformers with a view to extending asset life, preventing.

Multitrans unit requires no calibration or carrier gases.

General Information

Knowledge of the condition of transformers is essential for all electrical networks and on-line monitoring of transformers is an increasingly vital component of successful asset management program. The information provided by multi-gas-online DGA allows valuable asset capabilities to be maximised and expensive failures to be avoided.

Dissolved Gas Analysis (DGA) and moisture measurement of the insulation oil are recognised as the most important tests for condition assessment of transformers. Traditionally performed in a laboratory environment, TAPTRANS uniquely provides the capability as a single device to perform full on-line multi-gas DGA and moisture monitoring of a transformer main tank and on-load tap changer (OLTC), including both the selector and diverter tanks.

The TAPTRANS is designed for transformers with on-load tap changers (OLTC), which are recognised as being one of the most vulnerable parts of a transformer and which account for a large portion of unplanned outages and catastrophic failures. Full 9 gas DGA sampling can be performed as often as every hour on a single tank and up to once every three hours if all three possible oil tanks are connected. This includes monitoring of the 7 key gases gases (Hydrogen (H2), Carbon monoxide (CO), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Carbon dioxide (CO2)) employed in all common diagnostic methods and TAPTRANS offers full gas in oil trending, analysis and diagnostic capabilities through its close integration with GE’s powerful Perception software suite and/or users own software, historian and SCADA systems. Therefore TAPTRANS uniquely provides asset managers with powerful insight into not only main transformer tank condition but also key OLTC parameters such as moisture level, current conductive system condition, mechanism timing characteristics, contact wear and insulation condition. The TAPTRANS is suitable for monitoring any oil filled transformer which has an OLTC, whether in-tank or on-tank, oil or vacuum tap, with a view to extending asset life, preventing unexpected failure and operating on a condition based / predictive maintenance schedule.

Taptrans unit requires no calibration or carrier gases.

General Information

Knowledge of the condition of transformers is essential for all electrical networks and on-line monitoring of transformers is an increasingly vital component of successful asset management programs. The information provided by multi-gas on-line DGA allows valuable asset capabilities to be maximised and expensive failures to be avoided.

The DGA900 offers discrete on-line DGA and moisture monitoring for transformers and other oil insulated filled electrical equipment. Utilising photo-acoustic spectroscopy (PAS) measurement technology well suited to field application, providing laboratory challenging levels of precision and repeatability. Full 9 gas (Hydrogen (H2), Carbon monoxide (CO), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Carbon dioxide (CO2), Oxygen (O2), Nitrogen (N2)) DGA sampling can be performed as often as every hour including monitoring of the 7 key fault gases employed in all common diagnostic methods and DGA900 offers full gas in oil trending, analysis and diagnostic capabilities through its close integration with GE’s powerful Perception software suite and/or users own software, historian and SCADA systems. Capable of monitoring all sizes of transformers DGA900 is most widely employed for monitoring large, system critical or compromised transformers with a view to extending asset life, preventing unexpected failure and operating on a condition based / predictive maintenance schedule.

DGA900 unit requires no calibration or carrier gases.

General Information

Knowledge of the condition of transformers is essential for all electrical networks and on-line monitoring of transformers is an increasingly vital component of successful asset management programs. The information provided by multi-gas on-line DGA allows valuable asset capabilities to be maximised and expensive failures to be avoided.

The TRANSFIX DGA 500 is a new on-line monitoring unit that measures individual dissolved gas and moisture and provides both on-line monitoring and key exploratory diagnostics. . It provide measuring 5 key gases discretely; Hydrogen(H2) Carbon Monoxide(CO), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4) and moisture with using photo-acoustic spectroscopy technology. In particular, the TRANSFIX DGA 500 enables the well known Duval’s triangle DGA diagnostic described in Appendix B of IEC Standard 60599. It uses the value of 3 gases (Acetylene, Ethylene and Methane) and is suitable for identifying various degrees/temperature of thermal faults as well as the presence of high-energy electrical discharge faults.

Transfix DGA500 unit requires no calibration or carrier gases.

General Information

Transformers are key and expensive components of the electrical grid and knowledge of their health condition is essential to having a reliable network. When a transformer’s insulation system is overstressed, gases are produced that dissolve in the oil. Dissolved Gas-in-oil Analysis (DGA) is recognized as the best indicator of developing faults.

The Hydran 201Ti is a small and easy to setup continuous DGA monitor. It provides the basic information used by IEEE® Standard C57.104 and can be used as an essential first line of defence for the transformers in your fleet to obtain advance warning of a failure condition and minimize the risk of unplanned outages. The Hydran 201Ti’s composite-gas sensor provides the world renown “Hydran gas value” using fuel cell technology (described as fixed instruments – method 3 in the standard). It responds 100% to Hydrogen(H2) (general fault gas) and is also sensitive to Carbon Monoxide(CO) (overheated paper), Acetylene(C2H2) (arcing) and Ethylene(C2H4) (overheated oil), thus covering all the main transformer failure root causes.

General Information

Knowledge of the condition of transformers is essential for all electrical networks and on-line monitoring of transformers is an increasingly vital component of successful asset management programs. The information provided by multi-gas on-line DGA allows valuable asset capabilities to be maximised and expensive failures to be avoided.

The MINITRANS facilitates entry into discrete on-line DGA and moisture monitoring for transformers and other oil insulated filled electrical equipment. It provide measuring 3 key gases discretely; Hydrogen; Carbon Monoxide and Acetylene and moisture with using photo-acoustic spectroscopy technology, MINITRANS gives insight on developing faults, paper degradation and electrical arching providing trending of gas-in-oil through its close integration with GE’s powerful Perception software suite and/or users own software, historian and SCADA systems.

Minitrans unit requires no calibration or carrier gases.

General Information

Transformers are key and expensive components of the electrical grid and knowledge of their health condition is essential to having a reliable network. When a transformer’s insulation system is overstressed, gases are produced that dissolve in the oil. Dissolved Gas-in-oil Analysis (DGA) is recognized as the best indicator of developing faults.

The Hydran M2 is a continuous on-line dissolved composite gas (Hydrogen (H2), Carbon monoxide (CO), Ethylene (C2H4), Acetylene (C2H2), and moisture in oil monitoring device that alerts personnel of developing fault conditions in their transformer. It provides key monitoring information and minimizes the risk of unplanned outages.

Through the connection of additional sensors (for example top and bottom tank oil temperature, transformer load or ambient temperature), additional information can be captured and used to correlate with DGA and moisture values for a more in-depth analysis of the transformer’s condition.

This wealth of data can, not only be transmitted raw using the M2’s wide range of communication options but can also be converted into useful information through the on-board calculation of IEEE® standard’s based transformer mathematical models in order to provide further condition information.

Hydran M2-H2

The Hydran M2-H2 is a continuous on-line dissolved Hydrogen (H2), and moisture in oil monitoring device that alerts personnel of developing fault conditions in their transformer. It provides key monitoring information and minimizes the risk of unplanned outages.

General Information

When an unexpected failure of a critical transformer occurs, the operational and economical impacts on the utiIity are substantial. Today, many existing oil-insulated transformers used by electrical utilities and other industries are approaching the end of their design life and are experiencing significantIy higher probabilities of failures.

The InteIIix M0150 transformer monitoring system, from GE Energy, is a dynamic, intelligent, cost-effective solution which provides comprehensive monitoring and interactive transformer condition diagnostics.

Based on field-proven technoIogy, the InteIIix M0150 uses various sensors such as the Hydran M2 and state-of-the-art transformer mathematical models based on IEEE® or IEC® standards, to provide real-time information on the overall performance of the transformer to assist utility operations managers and system operators in making critical decisions.
